Full-Range Audio, Simple Ceiling Installation

Topcat’s hybrid speaker system delivers superior audio quality of voice and multimedia. The all-in-one design combined with wireless audio integration makes installation simple and cost effective for both new construction and existing classrooms.

Topcat in the classroom

Hover in the classroom to explore

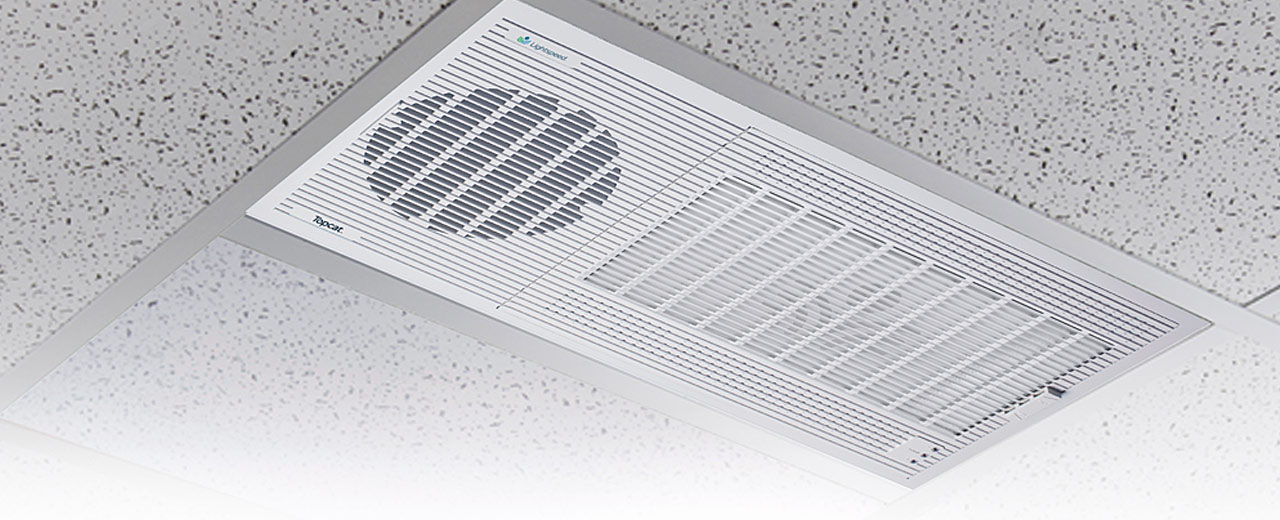

Wireless Simplicity, Seamless Ceiling Integration

Seamless Design Approach

Disappears into the ceiling for a clean, clutter-free space.

Hybrid Speakers Optimized for the Classroom

A flat-planel speaker for even distribution of speech and cone speaker for full-range multimedia sound.

Wireless Audio Integration Saves Cost

Wireless connectivity to multimedia eliminates the need for long cabling runs.

Access technology makes the difference

Superior wireless performance
Point to pair: Easy and versatile
2-way audio for distance learning

Superior wireless performance

Longer wireless range, no interference, no impact to wi-fi, and scalable to your evolving technology and instruction.

Point-to-pair: easy and versatile

Simply point the microphone at Redcat to pair, allowing for greater teacher mobility between rooms and simplicity of adding components.

2-way audio for distance learning

Interface with computer USB to connect students at home with the teacher and students in the live classroom.

Built-in Integration with Life-Safety Systems

Paging

Mutes instructional audio system when classroom announcements are broadcast.

Fire Alarms

Mutes instructional audio system when fire alarm is activated.

Alert Notifications

Activate alert from the teacher’s Flexmike.

Empower Student Participation and Collaboration

Activate System for Small Group Learning

As new instructional methods change the ways students use the classroom, audio systems need the flexibility to interact with the entire class, small groups, individuals, and even students in the hallway.

Learn More

T3 Student Microphones

Students simply tap the button to talk. They can be clearly heard in the room through the classroom speaker and by their peers in remote locations when integrated with the teacher computer or interactive display.

Learn More

See the Topcat Data Sheet

Topcat (TCN)
Flexmike (FMN)
Sharemike (SMN)
Media Connector (MCN)
SKU
TCN
Short Description
In-ceiling Classroom Audio System
Power Output
20W RMS
Power Input
AC Mains: 100-240V ~ 50/60Hz 1.5A DC: 24V/2.5A
Audio Inputs
One 3.5mm input, one SPID/F coaxial digital input
Digital Audio Outputs
One SPID/F digital output for speaker expansion
Frequency Response
60 Hz - 18kHz (-10db)
Wireless Communication
Access Technology (1.9 GHz)
Wireless Transmission Range
Up to 200 ft (60m) open field
Integrated Hybrid Speaker
Exciter Technology sound panel and low frequency cone driver
Overall Dimensions (W x H x D)
24" x 12" x 3.7" enclosure (595 x 295 x 94mm)
Weight
13.5 lbs (6.1 kg)
Mounting
In-ceiling installation or wall-mount with bracket

SKU
FMN
Description
Pendant-style transceiver
Lanyard
Magnetic clasp with integrated earbud
Wireless Communication
Access Technology (1.9 GHz)
Audio Distortion
<1%
Integrated Microphone
Uni-directional electret
Earbud Output
3.5mm
Audio Input
USB-C 2-way digital audio interface
Battery Power
3.7V Lithium Ion battery pack
Battery Life
8 hours (fully charged)
Charging
2 contacts for cradle charging
USB Connection
Type C for charging and audio
Power
On/off switch
Dimensions
2.9” x 1.1” x 0.7” (74 x 28 x 18mm)
Weight
1.2 oz (34g)
Volume Control Range
+/- 6 dB

SKU
SMN
Description
Handheld transceiver
Lanyard
None
Wireless Communication
Access Technology (1.9 GHz)
Audio Distortion
<1%
Integrated Microphone
Uni-directional electret
Audio Input
USB-C 2-way digital audio interface
Battery Power
3.7V Lithium Ion battery pack
Battery Life
8 hours (fully charged)
Charging
2 contacts for cradle charging
Power
On/off button
Dimensions
6.0” x 1.1” x 1.1” (153 x 28 x 28mm)
Weight
2.6 oz (73g)

SKU
MCN
Description
Transceiver
Power Input
5V/1.0A USB-C connector
Wireless Communication
Access Technology (1.9 GHz)
Tone control
1 bass / treble control
Digital audio interface
USB-C 2-way digital audio interface
Audio output
3.5mm stereo (x2) mixed with volume control
Audio inputs
3.5mm stereo (x4) with volume control
Audio Link/Pair Indicator
1 LED on front panel
Device pairing
Push button
Dimensions (L x W x H)
7.75” x 4.25 x 1.25”(197 x 108 x 32mm)
Weight
7.36 oz (209g)
