Ensure every voice is heard

Our tap-to-talk student microphones make it easy for students to be heard by their peers and teachers whether the learning environment is in-class, remote or a hybrid of both.

Clear student voices in the room and remote locations

Keep students engaged with their teachers and peers with a classroom speaker system, teacher microphone, and T3 microphone for each student. Students simply tap the button to talk and they can be clearly heard in the room through the classroom speaker and by their peers in remote locations when integrated with the teacher’s computer or interactive display.

Bring Tap-to-Talk to Your Existing System

Up to twelve T3 microphones connected to Access Link can interface with any existing classroom audio system.

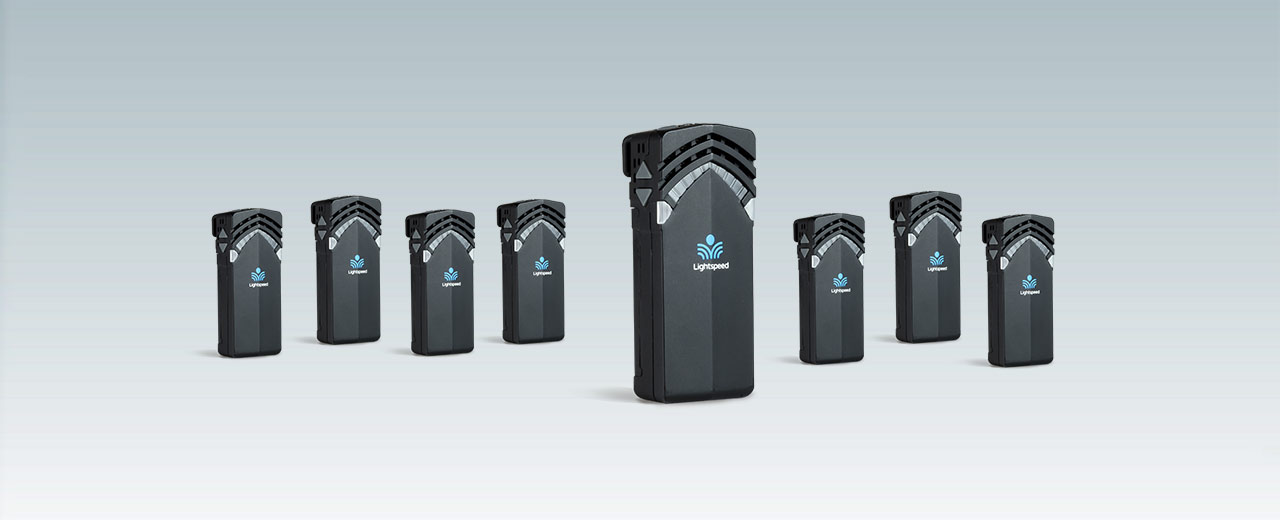

Flexmike (FMN)

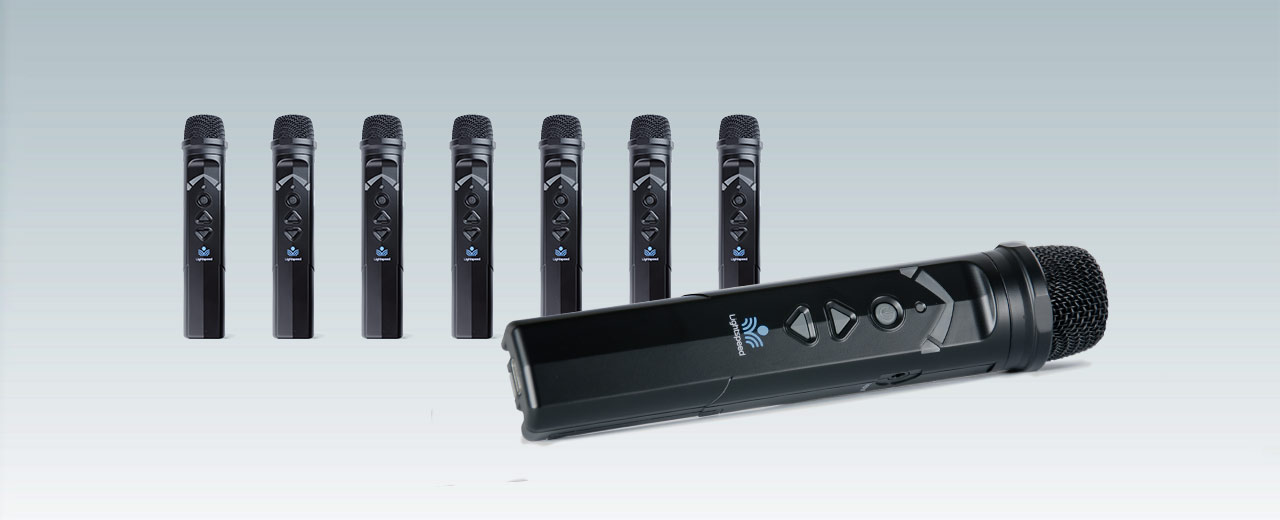

Sharemike (SMN)
Redcat (RCN)
Topcat (TCN)
975 Base Station
SKU
FMN
Description
Pendant-style transceiver
Lanyard
Magnetic clasp with integrated earbud
Wireless Communication
Access Technology (1.9 GHz)
Audio Distortion
<1%
Integrated Microphone
Uni-directional electret
Earbud Output
3.5mm
Audio Input
USB-C 2-way digital audio interface
Battery Power
3.7V Lithium Ion battery pack
Battery Life
8 hours (fully charged)
Charging
2 contacts for cradle charging
USB Connection
Type C for charging and audio
Power
On/off switch
Dimensions
2.9” x 1.1” x 0.7” (74 x 28 x 18mm)
Weight
1.2 oz (34g)
Volume Control Range
+/- 6 dB

SKU
SMN
Description
Handheld transceiver
Lanyard
None
Wireless Communication
Access Technology (1.9 GHz)
Audio Distortion
<1%
Integrated Microphone
Uni-directional electret
Audio Input
USB-C 2-way digital audio interface
Battery Power
3.7V Lithium Ion battery pack
Battery Life
8 hours (fully charged)
Charging
2 contacts for cradle charging
Power
On/off button
Dimensions
6.0” x 1.1” x 1.1” (153 x 28 x 28mm)
Weight
2.6 oz (73g)

SKU
RCN
Short Description
All-in-one classroom audio system with integrated receiver, amplifier, and speaker
Power Output
15W
Total Harmonic Distortion
<1%, 10 W
Wireless Transmission Range
Up to 200 ft (60m) open field
Audio Input with Volume Control
[1] 3.5mm
ALD Output with Volume Control
[1] 3.5mm
Flat-panel Speaker System
Exciter Technology sound panel
Speaker load impedance
8 Ω
Controls
(1) power button; (1) audio input volume control; (1) audio output volume control; (1) tone control
Overall Dimensions (W x H x D)
16" x 1.75" x 9.5" (406 x 45 x 241mm)
Weight
2.9 lbs (1.3 kg), with battery pack 3.6 lbs (1.6 kg)
Mounting
Table top or wall-mount

SKU
TCN
Short Description
In-ceiling Classroom Audio System
Power Output
20W RMS
Power Input
AC Mains: 100-240V ~ 50/60Hz 1.5A DC: 24V/2.5A
Audio Inputs
One 3.5mm input, one SPID/F coaxial digital input
Digital Audio Outputs
One SPID/F digital output for speaker expansion
Frequency Response
60 Hz - 18kHz (-10db)
Wireless Communication
Access Technology (1.9 GHz)
Wireless Transmission Range
Up to 200 ft (60m) open field
Integrated Hybrid Speaker
Exciter Technology sound panel and low frequency cone driver
Overall Dimensions (W x H x D)
24" x 12" x 3.7" enclosure (595 x 295 x 94mm)
Weight
13.5 lbs (6.1 kg)
Mounting
In-ceiling installation or wall-mount with bracket

SKU
975
Short Description
975 wireless audio hub
Wireless Communication
Access Technology (1.9GHz)
Wireless Transmission Range
Up to 200 ft (60m) open field
Power Output
20 watts per channel (40 watts total)
Frequency Response
60 Hz - 7 kHz
Total Harmonic Distortion
< 1% @ 10 Watts
DC Power Input
24V/2.5A
Audio Input with Volume Control
Three 3.5mm inputs, one Toslink Digital Input
Audio Output
One 3.5mm Output
Tone Control
Bass / Treble
Life-Safety Interface Connections
Inputs: PageFirst (25/70V page mute), relay mute Output: Contact closure (triggered from mic)
Overall Dimensions (W x D x H)
7.6" x 5" x 1.13" (193mm x 127mm x 29mm)
Weight
9.5 oz / 269 g
