955 Access Classroom Audio System
Installed classroom audio system with teacher microphone that includes a variety of different speaker options to best meet the needs of any classroom, open space or even large area.

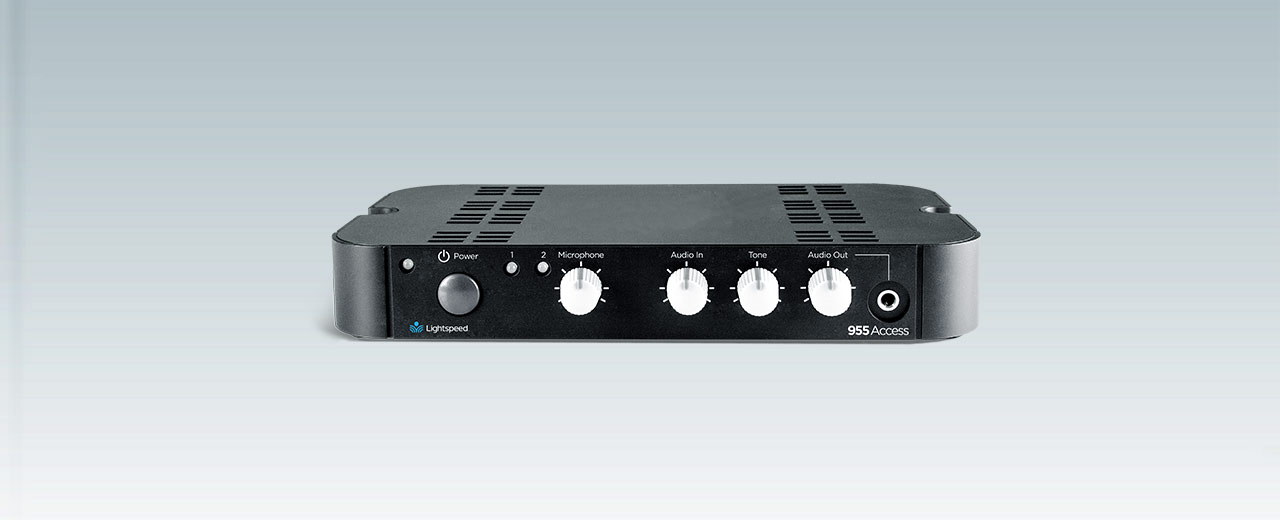

955 Access Base Station
Flexmike Pendant Microphone (FMA)
Sharemike Handheld Microphone (SMA)
TCQ Ceiling Speaker
Media Connector (MCN)
Activate Station
Pod
SKU
955
Short Description
955 Access wireless audio hub
Total Harmonic Distortion
< 1% @ 40 Watts (20W / Channel)
Acoustic Frequency Response
120 Hz - 7 kHz
Wireless Range
Up to 200 ft (60m) open field
Device Registration
Push button for registration with microphones, Activate Station, Pods or Media Connector
Connections
(1) 6-pin euro-block connector; (1) mixed audio output - 3.5mm; (1) DC power input; (4) audio inputs - 3.5mm; Page mute (PageFirst™) Euro-block
Audio Input with Volume Control
3.5mm stereo (x4) w/ master volume
ALD Output with Volume Control
3.5mm stereo (x1) mixed w/ volume control
Speaker load impedance
4Ω / Output
Controls
(1) power button with LED; (1) microphone volume control; (1) audio input volume control; (1) audio output level control,;Page mute (PageFirst™) sensitivity level control; (1) tone control
Page Mute
Optional PageFirst™ connection
Overall Dimensions (W x H x D)
7.6" x 5" x 1.13" (193mm x 127mm x 29mm)
Weight
9.5 oz / 260 g
SKU
FMA
Description
Pendant-style teacher transmitter
Lanyard
Magnetic Clasp
Wireless Communication
Access Technology [1.9 GHz]
Audio Distortion
<1%
Integrated Microphone
Uni-directional electret
Earbud Output
3.5mm TRRS jack
Audio Input
3.5mm for audio source
Battery Power
2.4V NiMH battery pack
Battery Life
8 hours [fully charged]
Charging
2 Contacts for cradle charging
USB Connection
Optional interface with computer USB audio while charging
Power
On/off/mute switch
Device Registration
Push button for registration with Access Audio System
Dimensions
2.9" x 1.1" x 1.0" (74 x 28 x 25 mm)
Weight
1.8 oz (51g)
Volume Control Range
(+ / - 12dB)
Warranty
1-Year
SKU
SMA
Description
Handheld microphone for student sharing
Lanyard
None
Wireless Communication
Access Technology [1.9 GHz]
Audio Distortion
<1%
Integrated Microphone
Uni-directional dynamic
Audio Input
3.5mm
Battery Power
2 AA NiMH battery pack
Battery Life
8 hours [fully charged]
Charging
5v charging jack
Power
on/off/mute switch
Device Registration
Push button for registration with Access Audio System
Dimensions
2.25" x 2.25" x 8.75" (57.2 x 57.2 x 222.3 mm)
Weight
7.9 oz (224g)
Warranty
5-Year
SKU
TCQ
Short Description
Two-way hybrid speaker system with exciter technology panel and low frequency cone driver.
Driver Size
Panel Size: 16.25" x 8.25" (41.3cm x 210cm)
Frequency Response
80 Hz - 20 kHz +/- 10dB
Impedence
8 Ohms
Power Handling
15 W RMS
Dimensions
11.38" x 23.43' x 4" (28.9cm x 55.9cm x 10.2cm) Plenum-rated enclosure (UL 2043)
Weight
9 lbs. (4.08kg)
SKU
MCN
Description
Transceiver
Power Input
5V/1.0A USB-C connector
Wireless Communication
Access Technology (1.9 GHz)
Tone control
1 bass / treble control
Digital audio interface
USB-C 2-way digital audio interface
Audio output
3.5mm stereo (x2) mixed with volume control
Audio inputs
3.5mm stereo (x4) with volume control
Audio Link/Pair Indicator
1 LED on front panel
Device pairing
Push button
Dimensions (L x W x H)
7.75” x 4.25 x 1.25”(197 x 108 x 32mm)
Weight
7.36 oz (209g)
SKU
AL
Short Description
Device charging station with wireless audio and Blue tooth connectivity.
Total Harmonic Distortion
<1%
Acoustic Frequency Response
80 Hx to 7 kHz +/- 3 dB
Wireless Communication
Access Technology (1.9 GHz + RF4CE), Bluetooth audio (2 channels), Bluetooth LE (2 channels)
Mobile App Functionality
Bluetooth interface with companion mobile application with the following functionality:
1. Control and connect to small group 2-way audio Pods
2. Adjust system audio levels and tone control
3. Mobile device audio streaming from audio books, podcasts, music, etc.
4. Audio/video recording synched with microphone and Pod audio
5. Enable advanced system features
Wireless Range
Up to 200 ft. (60m) from base system, up to 100 ft. (30m) from mobile device
Device Registration
(2) push buttons for Bluetooth device pairing, (1) push button for Access device registration
Audio Input with Volume Control
(4) 3.5mm stereo jacks with volume control
ALD Output with Volume Control
(2) 3.5mm jacks with volume control
Cradle Charging
(2) Flexmikes, (8) Pods
USB Charging Ports
(2) 5V/0.3A charging for Pods, Sharemikes or remotes; (2) 5V/1.0A charging for mobile devices or Pods
Controls
Master microphone, audio input, audio output with 10-segment level indicator
Overall Dimensions (W x H x D)
(W x D x H): 13.3' x 5.9" x 1.9" (340 x 150 x 52mm)
Weight
1.85 lbs (0.8kg)
Mounting
Table-top
SKU
POD
Short Description
2-way audio Pod with integrated speaker and microphones
Power Output
1 Watt per Pod speaker
Wireless Range
Up to 200 ft. (60m) from Access base system, up to 100 ft. (30m) with walls
Device Registration
Push button and LED for registration with Access base system
Charging
2 contacts for cradle charging + 5V/0.3A micro-USB
Integrated Speaker
Flat panel exciter-driven speaker, Exciter Technology, Flat-panel Speaker, 1" high output speaker, flatpanel, Cone Speaker
Overall Dimensions (W x H x D)
2.1" x 5.2" x 1.1" (54 x 132 x 28mm)
Weight
6.4 oz. (181g)
Integrated microphones
(2) omni-directional electret with noise rejection
Headphone output
3.5mm
TCQ Ceiling Speaker
Single TCQ hybrid ceiling speaker with mounting hardware for use with Lightspeed classroom audio systems.
Pod
Student group speaker with a rechargeable battery. The Pods must accompany an Activate Station and a whole-room instructional audio system built on our Access Platform.

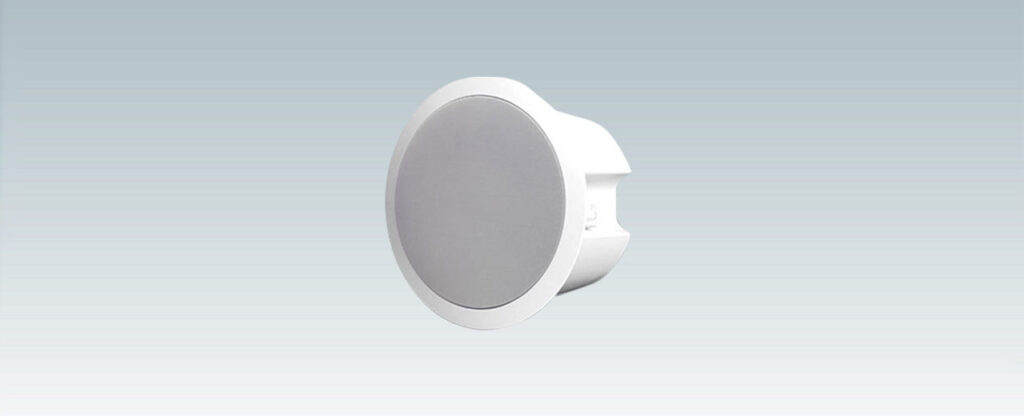

DRQ Drop Ceiling Speaker
Single DRQ speaker with tile support for use with Lightspeed classroom audio systems.

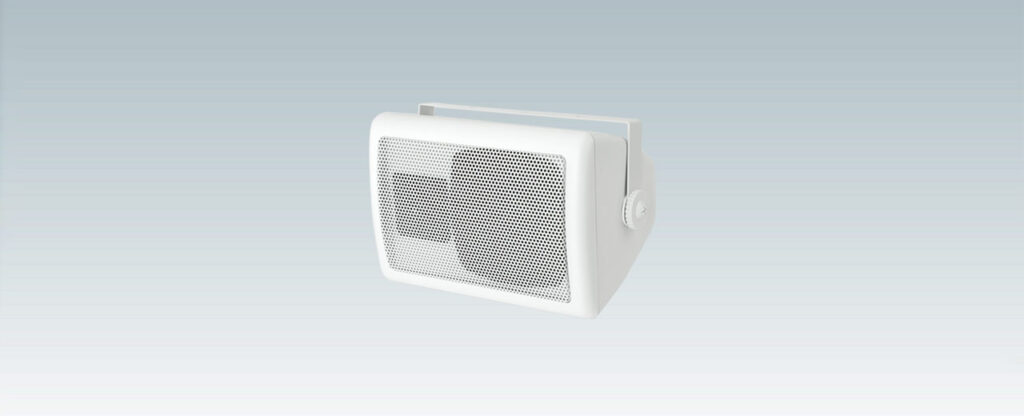

WMQ Wall Speaker
Wall speaker with traditional cone technology used with the 800 Series classroom audio systems.
5V 1A Power Supply
Compatible power supply for use with the Flexmike Cradle Charger, USB3DC Power Adapter, Redmike Cradle Charger, and the Infrared Media Connector.
2 AA NiMH Rechargeable Battery Pack
2 AA NIMH Rechargeable Battery Pack used with the Redmike Share handheld classroom microphone.
2.4V Rechargeable Battery Pack
2.4V NiMH rechargeable battery pack for use with Flexmike and Flexcat handheld remote control.
USB Charging Cable
USB Type A-MICRO B Cable for charging Flexmike classroom microphone or Activate Speaker Pod.
