A wireless microphone for the teacher, a wireless audio platform for the future.

Powered by Lightspeed’s Access Technology, Access Link works with any classroom configuration, and at long distances. Just as importantly, it operates on a bandwidth that virtually eliminates interference with other classroom technology.

Clearer instruction and more student participation

With a second microphone for pass-around use, students take the stage and share with their peers.

Perfect for large, open and flexible learning spaces

It delivers clear audio in spaces up to 5,000 square feet – with no dropout, and no interference with your existing networks and equipment.

Add 2-way interactive audio and wireless media integration

Use the Activate Station with Bluetooth to connect to mobile devices for control and audio streaming.

Add microphones and media to existing audio systems

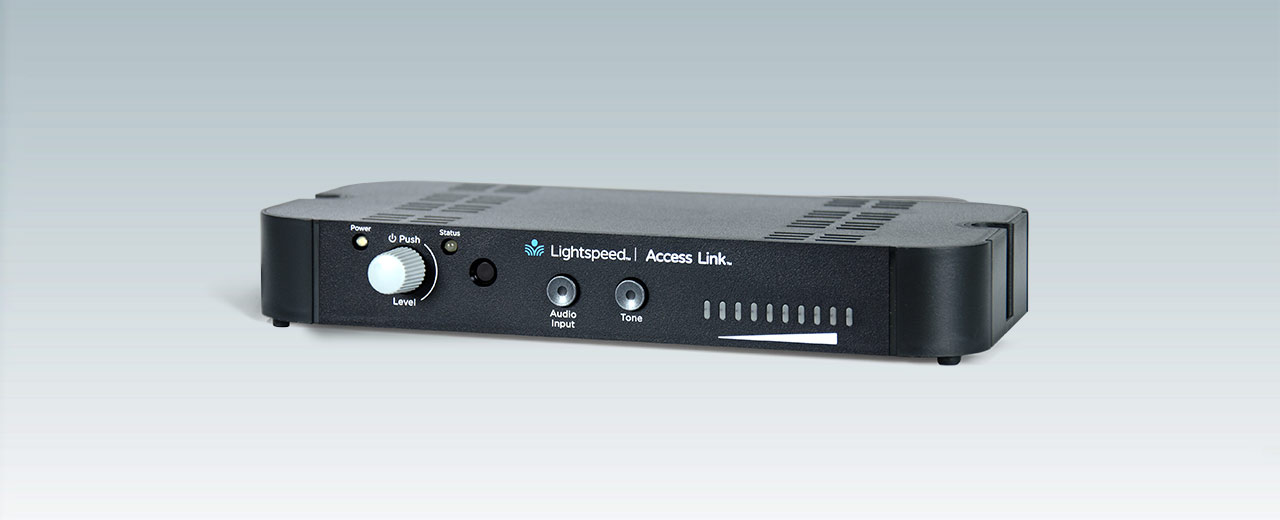

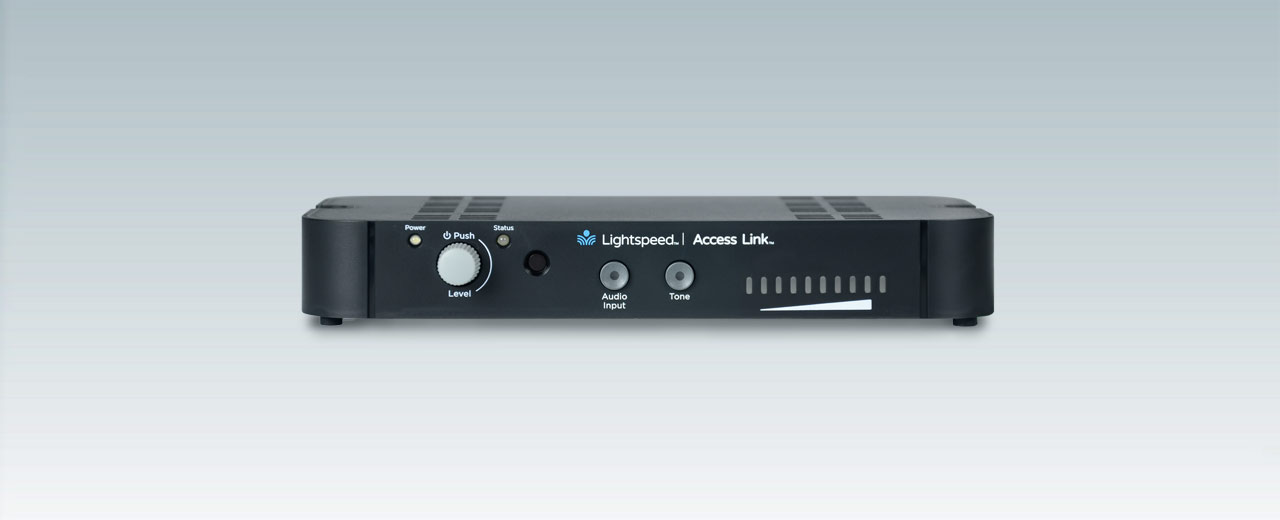

Access Link Base Station (ALN)
SKU
ALN
Short Description
Wireless audio base station
Power Supply
5V Mini USB
Device Registration
Push button for registration with microphones, Activate Station, Pods or Media Connector

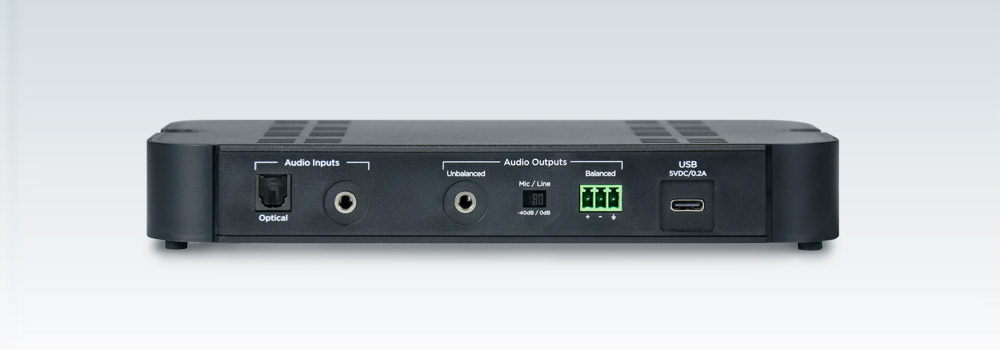

Connections
(1) audio input - 3.5mm, (1) unbalanced output - 3.5mm, (1) DC power in, (1) USB power input
Audio Input with Volume Control
3.5mm stereo (x1) w/ master volume
ALD Output with Volume Control
(1) 3.5mm stereo and (1) balanced output (3-pin euro-block)
Controls
(1) power button with LED,(1) audio input volume control, (1) tone control, (1)audio output level control
Overall Dimensions (W x H x D)
7.6" x 5" x 1.13" (193.04 mm x 127mm x 28.7mm)
Weight
9.5 oz (269g)
