Media Connector

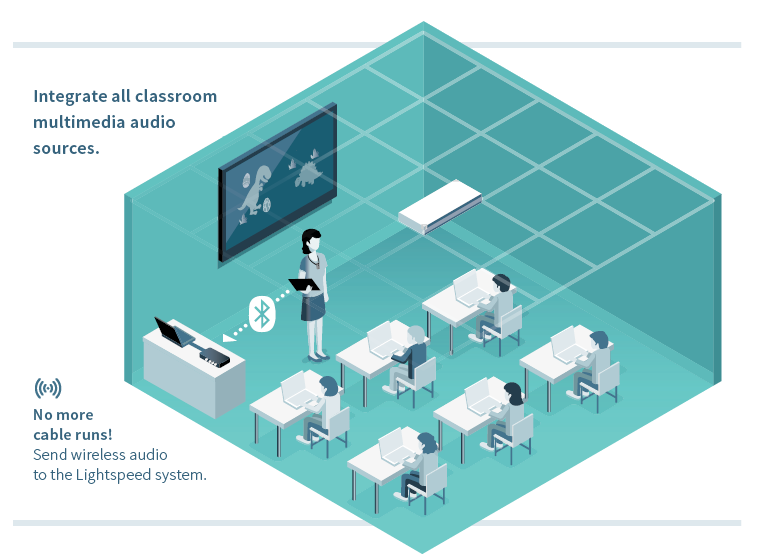

Integrate all classroom multimedia audio sources. Computers, panels, mobile devices, and more can be connected to the compact Media Connector which wirelessly transmits the signal to a Lightspeed audio system.

Media Connector is designed to be connected to the primary media source in the classroom, usually the computer or display panel.

Media Connector (MCN)
SKU
MCN
Description
Transceiver
Power Input
5V/1.0A USB-C connector
Wireless Communication
Access Technology (1.9 GHz)
Tone control
1 bass / treble control
Digital audio interface
USB-C 2-way digital audio interface
Audio output
3.5mm stereo (x2) mixed with volume control
Audio inputs
3.5mm stereo (x4) with volume control
Audio Link/Pair Indicator
1 LED on front panel
Device pairing
Push button
Dimensions (L x W x H)
7.75” x 4.25 x 1.25”(197 x 108 x 32mm)
Weight
7.36 oz (209g)



Videos
Contact Technical Support
Lightspeed Media Connector MCN Training
Lightspeed Media Connector MCN Training
Pairing Your MCN to a Lightspeed System

Contact Technical Support

Our team is ready to help you troubleshoot or repair your existing system.
