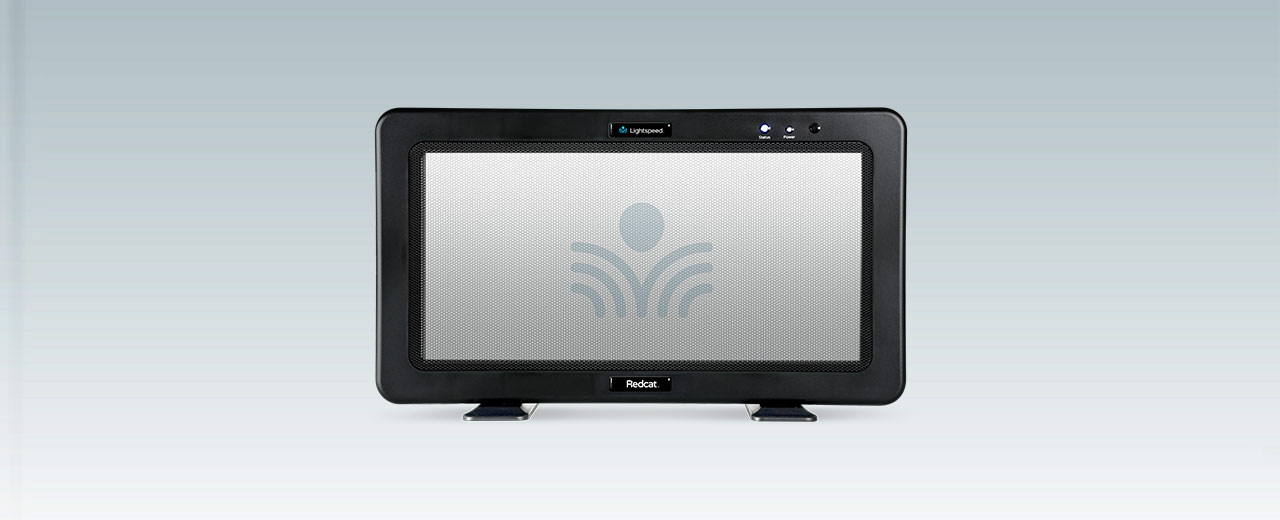

Lightspeed Redcat instructional audio system for the classroom

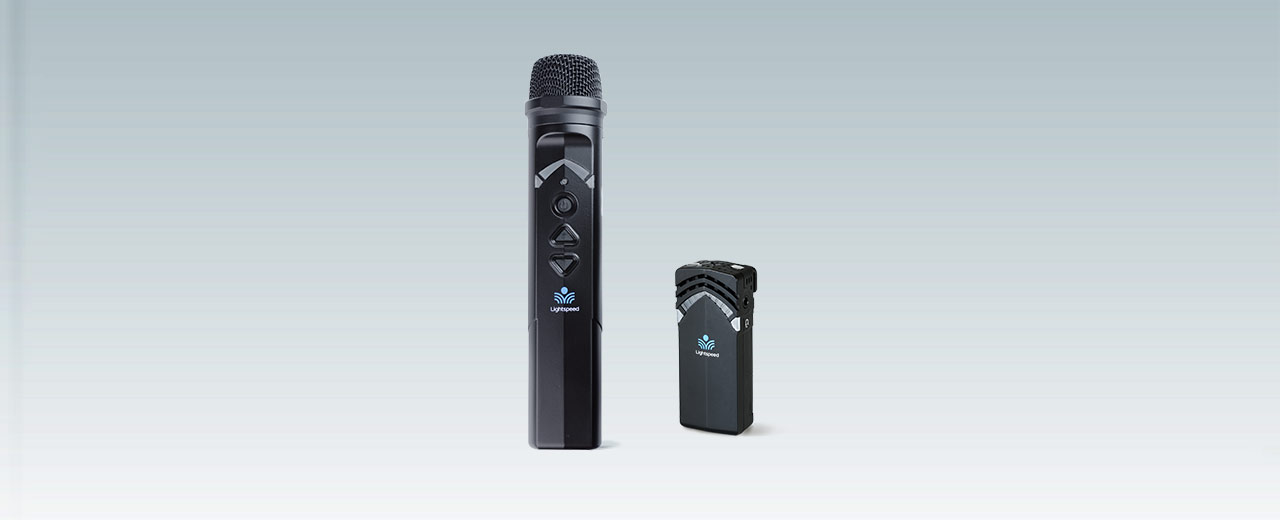

Flexmike and sharemike for Lightspeed Redcat instructional audio system for classrooms

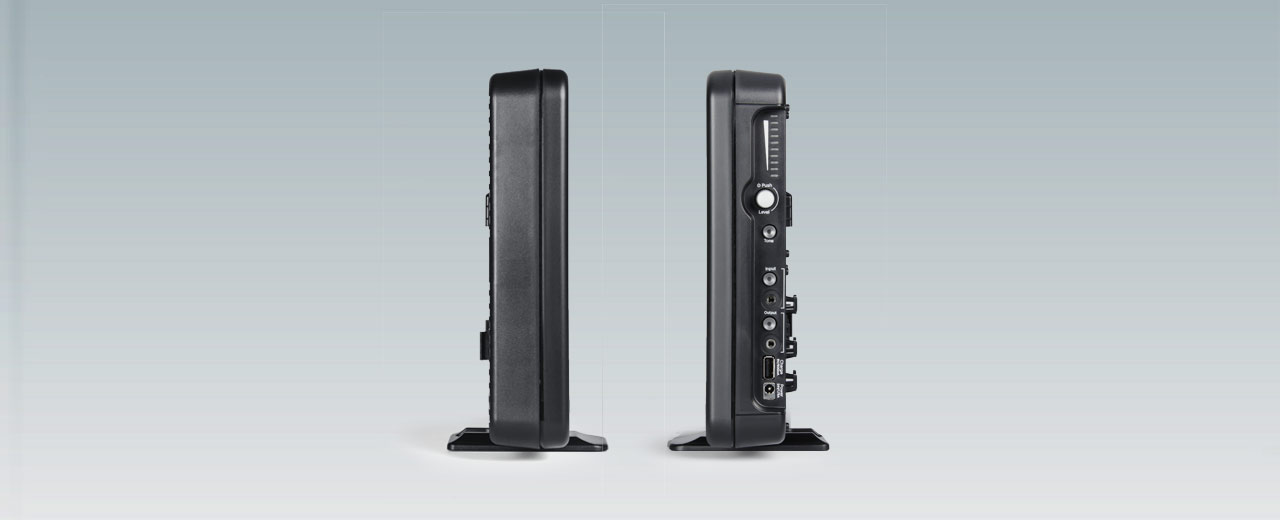

Side profile of Lightspeed Redcat instructional audio system for classrooms
Back profile of Lightspeed Redcat instructional audio system for the classroom

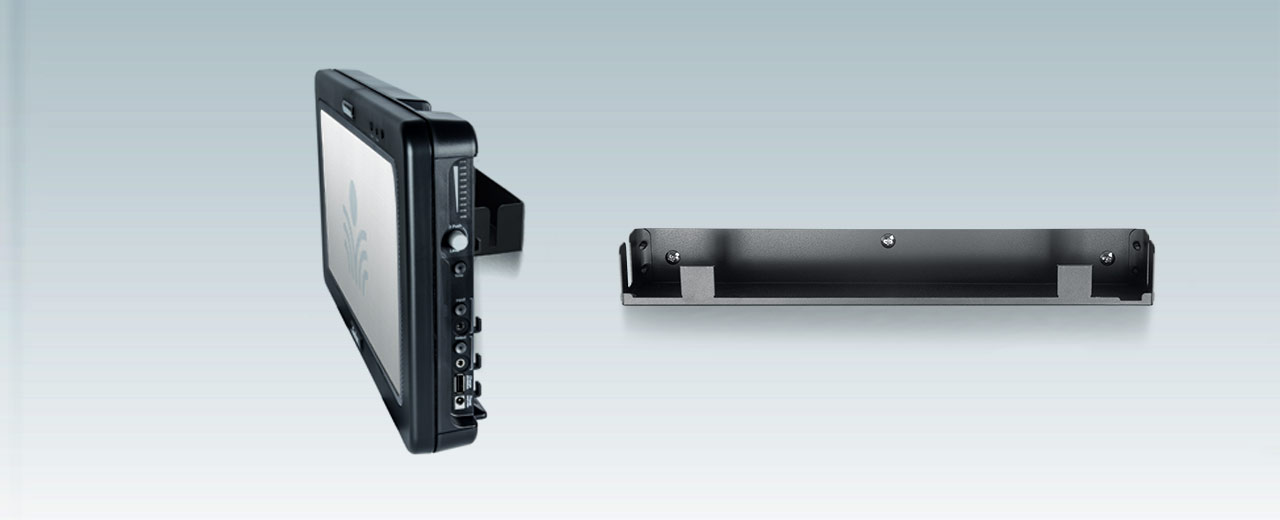

Wall-mounted Redcat instructional audio system for the classroom
360° View
Overview
Specifications
Accessories
Support

Clear audio for all, no installation

Redcat’s all-in-one design makes it the simplest way to bring clear audio to any class. Ready to go right out of the box, Redcat delivers even distribution of sound and high speech intelligibility throughout the classroom to ensure the teacher’s voice is clearly heard by all students.

Redcat in the Classroom

Hover in the classroom to explore

Simple, portable, purpose-built for learning

Ready out of the box, no installation required

Plug it in and begin speaking. No need for costly installation, Redcat maximizes your investment in instruction.

Flat-panel speaker excels in speech intelligibility

Exciter technology fills the room with the teacher’s natural voice, enabling students to hear every word.

Portable
and flexible

Redcat can easily be moved around to any instructional space, with optional battery it can even be used for outdoor learning.

Access technology makes the difference

Superior wireless performance
Point to pair: Easy and versatile
2-way audio for distance learning

Superior wireless performance

Longer wireless range, no interference, no impact to wi-fi, and scalable to your evolving technology and instruction.

Point-to-pair: easy and versatile

Simply point the microphone at Redcat to pair, allowing for greater teacher mobility between rooms and simplicity of adding components.

2-way audio for distance learning

Interface with computer USB to connect students at home with the teacher and students in the live classroom.


See the Redcat Data Sheet

Empower student participation and collaboration

Activate System for Small Group Learning

As new instructional methods change the ways students use the classroom, audio systems need the flexibility to interact with the entire class, small groups, individuals, and even students in the hallway.

Learn More

T3 Student Microphones

Students simply tap the button to talk. They can be clearly heard in the room through the classroom speaker and by their peers in remote locations when integrated with the teacher computer or interactive display.

Learn More

Redcat RCN
Flexmike (FMN)
Sharemike (SMN)

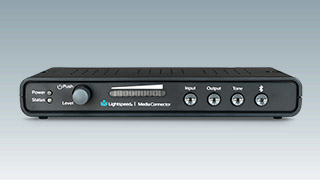

Media Connector (MCN)
SKU
RCN
Short Description
All-in-one classroom audio system with integrated receiver, amplifier, and speaker
Wireless Communication
Access Technology (1.9GHz)
Wireless Transmission Range
Up to 200 ft (60m) open field
Flat-panel Speaker System
Exciter technology sound panel
Power Output
20 watts RMS
Frequency Response
120 Hz - 13kHz (-10db)
DC Power Input
24V/1.75A
Audio Input
One 3.5mm input
Audio Output
One 3.5mm output
Overall Dimensions (W x D x H)
16" x 1.75" x 9.5" (406 x 45 x 241mm)
Weight
2.9 lbs (1.3 kg), with battery pack 3.6 lbs (1.6 kg)
Mounting
Table top or wall-mount

SKU
FMN
Description
Pendant-style transceiver
Lanyard
Magnetic clasp with integrated earbud
Wireless Communication
Access Technology (1.9 GHz)
Audio Distortion
<1%
Integrated Microphone
Uni-directional electret
Earbud Output
3.5mm
Audio Input
USB-C 2-way digital audio interface
Battery Power
3.7V Lithium Ion battery pack
Battery Life
8 hours (fully charged)
Charging
2 contacts for cradle charging
USB Connection
Type C for charging and audio
Power
On/off switch
Dimensions
2.9” x 1.1” x 0.7” (74 x 28 x 18mm)
Weight
1.2 oz (34g)
Volume Control Range
+/- 6 dB

SKU
SMN
Description
Handheld transceiver
Lanyard
None
Wireless Communication
Access Technology (1.9 GHz)
Audio Distortion
<1%
Integrated Microphone
Uni-directional electret
Audio Input
USB-C 2-way digital audio interface
Battery Power
3.7V Lithium Ion battery pack
Battery Life
8 hours (fully charged)
Charging
2 contacts for cradle charging
Power
On/off button
Dimensions
6.0” x 1.1” x 1.1” (153 x 28 x 28mm)
Weight
2.6 oz (73g)

SKU
MCN
Description
Transceiver
Power Input
5V/1.0A USB-C connector
Wireless Communication
Access Technology (1.9 GHz)
Tone control
1 bass / treble control
Digital audio interface
USB-C 2-way digital audio interface
Audio output
3.5mm stereo (x2) mixed with volume control
Audio inputs
3.5mm stereo (x4) with volume control
Audio Link/Pair Indicator
1 LED on front panel
Device pairing
Push button
Dimensions (L x W x H)
7.75” x 4.25 x 1.25”(197 x 108 x 32mm)
Weight
7.36 oz (209g)
