T25 is versatile and connected

The T25 ensures audio clarity of teachers, students and multimedia in any instructional space in the school. It also works with your existing life-safety solutions to ensure building-wide communications are never missed…and can initiate an alert notification directly from the teacher’s microphone.

T25 in the classroom

Hover in the classroom to explore

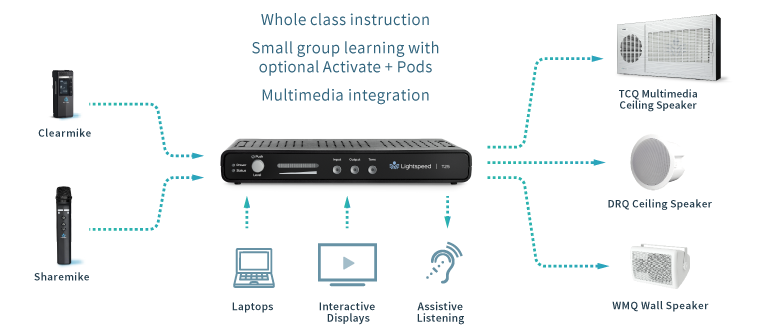

T25 Connection Diagram

Built-in Integration with Life-Safety Systems

Paging

Mutes instructional audio system when classroom announcements are broadcast.

Fire Alarms

Mutes instructional audio system when fire alarm is activated.

Alert Notifications

Activate alert from the teacher’s Flexmike.

Access technology makes the difference

Superior wireless performance
Point to pair: Easy and versatile
2-way audio for distance learning

Superior wireless performance

Longer wireless range, no interference, no impact to wi-fi, and scalable to your evolving technology and instruction.

Point-to-pair: easy and versatile

Simply point the microphone at T25 to pair, allowing for greater teacher mobility between rooms and simplicity of adding components.

2-way audio for distance learning

Interface with computer USB to connect students at home with the teacher and students in the live classroom.

Empower student participation and collaboration

Activate System for Small Group Learning

As new instructional methods change the ways students use the classroom, audio systems need the flexibility to interact with the entire class, small groups, individuals, and even students in the hallway.

Learn More

T3 Student Microphones

Students simply tap the button to talk. They can be clearly heard in the room through the classroom speaker and by their peers in remote locations when integrated with the teacher computer or interactive display.

Learn More

See the T25 Data Sheet

T25
SKU
T25
Description
Wireless audio hub
Wireless Communication
Access Technology (1.9 GHz)
Frequency Response
20 Hz - 20 kHz Power Amp, 150 Hz - 6.5 kHz Wireless
Power Supply Options
24VDC/2.5A
Power Output
40 WRMS total (20 WRMS/channel) with 24VDC supply
Tone Control
Bass/Treble control
Audio Inputs
Three (3) 3.5mm inputs, one S/PDIF coaxial digital input
Audio Output
One (1) 3.5mm output
Max Input/Output Level
1.4VRMS / 1.4VRMS
Total Harmonic Distortion
<1%
Analog Control Signals
Inputs: PageFirst (25/70V page mute), Relay Input
Output: Contact closure (initiated from microphone)
Dimensions (W x H x D)
9.0” x 6.1” x 1.2” (229mm x 155mm x 30mm)
Weight
16.5 oz (468g)


Activate
A small group instructional audio system that includes up to 12 audio pods to enable 2-way communication between the teacher and each collaborative student group in the classroom.
