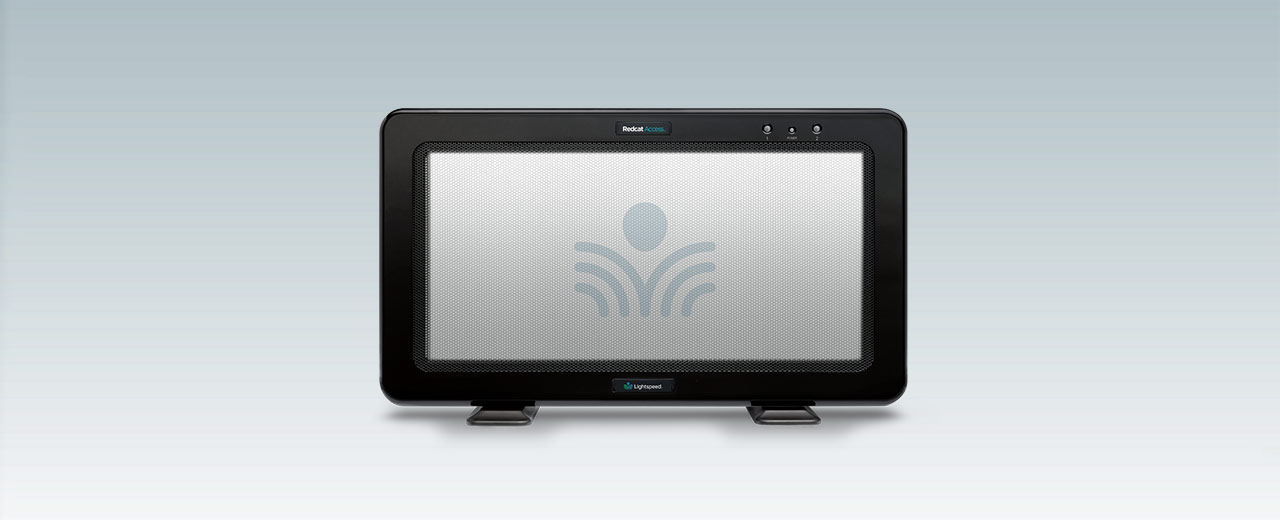

Redcat Access Classroom Audio System

All-in-one classroom audio system with a flat-panel speaker design and wireless teacher microphone to deliver highly intelligible speech everywhere in the room.

Redcat Access
Flexmike Pendant Microphone (FMA)
Sharemike Handheld Microphone (SMA)
Media Connector (MCN)
Activate Station
Pod
SKU
RCA
Short Description
All-in-one classroom audio system with integrated receiver, amplifier, and speaker
Power Output
20W
Total Harmonic Distortion
<1%, 10 W
Wireless Range
Up to 200 ft (60m) open field
Device Registration
Push button for transmitter(s), Activate, Pod(s), Media Connector
Audio Input with Volume Control
[1] 3.5mm
ALD Output with Volume Control
[1] 3.5mm on Side Panel
Integrated Speaker
Exciter Technology Flat-panel Speaker
Speaker load impedance
8 Ω
Controls
(1) power switch; (1) microphone volume control; (1) audio input volume control; (1) audio output volume control; (1) tone control
Overall Dimensions (W x H x D)
16" x 9.5" x 1.75" (40.64 x 24.1 x 4.45 cm)
Weight
2.9 lbs (1.3 kg), with battery pack 3.6 lbs (1.6 kg)
Mounting
Table top or wall-mount

SKU
FMA
Description
Pendant-style teacher transmitter
Lanyard
Magnetic Clasp
Wireless Communication
Access Technology [1.9 GHz]
Audio Distortion
<1%
Integrated Microphone
Uni-directional electret
Earbud Output
3.5mm TRRS jack
Audio Input
3.5mm for audio source
Battery Power
2.4V NiMH battery pack
Battery Life
8 hours [fully charged]
Charging
2 Contacts for cradle charging
USB Connection
Optional interface with computer USB audio while charging
Power
On/off/mute switch
Device Registration
Push button for registration with Access Audio System
Dimensions
2.9" x 1.1" x 1.0" (74 x 28 x 25 mm)
Weight
1.8 oz (51g)
Volume Control Range
(+ / - 12dB)
Warranty
1-Year

SKU
SMA
Description
Handheld microphone for student sharing
Lanyard
None
Wireless Communication
Access Technology [1.9 GHz]
Audio Distortion
<1%
Integrated Microphone
Uni-directional dynamic
Audio Input
3.5mm
Battery Power
2 AA NiMH battery pack
Battery Life
8 hours [fully charged]
Charging
5v charging jack
Power
on/off/mute switch
Device Registration
Push button for registration with Access Audio System
Dimensions
2.25" x 2.25" x 8.75" (57.2 x 57.2 x 222.3 mm)
Weight
7.9 oz (224g)
Warranty
5-Year

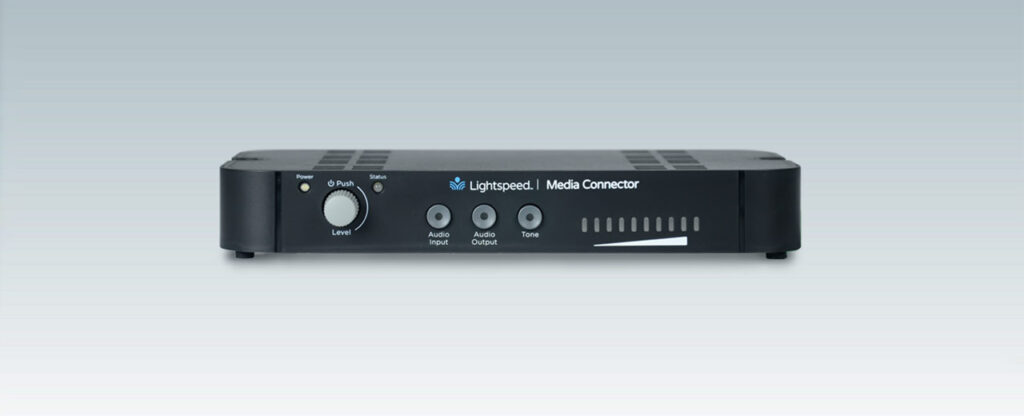

SKU
MCN
Description
Transceiver
Power Input
5V/1.0A USB-C connector
Wireless Communication
Access Technology (1.9 GHz)
Tone control
1 bass / treble control
Digital audio interface
USB-C 2-way digital audio interface
Audio output
3.5mm stereo (x2) mixed with volume control
Audio inputs
3.5mm stereo (x4) with volume control
Audio Link/Pair Indicator
1 LED on front panel
Device pairing
Push button
Dimensions (L x W x H)
7.75” x 4.25 x 1.25”(197 x 108 x 32mm)
Weight
7.36 oz (209g)

SKU
AL
Short Description
Device charging station with wireless audio and Blue tooth connectivity.
Total Harmonic Distortion
<1%
Acoustic Frequency Response
80 Hx to 7 kHz +/- 3 dB
Wireless Communication
Access Technology (1.9 GHz + RF4CE), Bluetooth audio (2 channels), Bluetooth LE (2 channels)
Mobile App Functionality
Bluetooth interface with companion mobile application with the following functionality: 1. Control and connect to small group 2-way audio Pods 2. Adjust system audio levels and tone control 3. Mobile device audio streaming from audio books, podcasts, music, etc. 4. Audio/video recording synched with microphone and Pod audio 5. Enable advanced system features
Wireless Range
Up to 200 ft. (60m) from base system, up to 100 ft. (30m) from mobile device
Device Registration
(2) push buttons for Bluetooth device pairing, (1) push button for Access device registration
Audio Input with Volume Control
(4) 3.5mm stereo jacks with volume control
ALD Output with Volume Control
(2) 3.5mm jacks with volume control
Cradle Charging
(2) Flexmikes, (8) Pods
USB Charging Ports
(2) 5V/0.3A charging for Pods, Sharemikes or remotes; (2) 5V/1.0A charging for mobile devices or Pods
Controls
Master microphone, audio input, audio output with 10-segment level indicator
Overall Dimensions (W x H x D)
(W x D x H): 13.3' x 5.9" x 1.9" (340 x 150 x 52mm)
Weight
1.85 lbs (0.8kg)
Mounting
Table-top

SKU
POD
Short Description
2-way audio Pod with integrated speaker and microphones
Power Output
1 Watt per Pod speaker
Wireless Range
Up to 200 ft. (60m) from Access base system, up to 100 ft. (30m) with walls
Device Registration
Push button and LED for registration with Access base system
Charging
2 contacts for cradle charging + 5V/0.3A micro-USB
Integrated Speaker
Flat panel exciter-driven speaker, Exciter Technology, Flat-panel Speaker, 1" high output speaker, flatpanel, Cone Speaker
Overall Dimensions (W x H x D)
2.1" x 5.2" x 1.1" (54 x 132 x 28mm)
Weight
6.4 oz. (181g)
Integrated microphones
(2) omni-directional electret with noise rejection
Headphone output
3.5mm

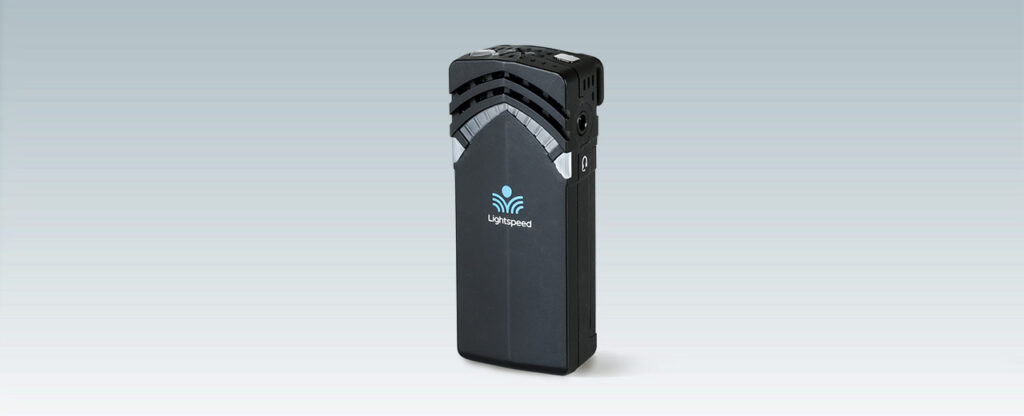

Flexmike (FMN)
A simple, wireless microphone for every student. With tap-to-talk functionality that requires no teacher interface, T3 microphones make it easy for in-room students to share so teachers and remote learners never miss a word.

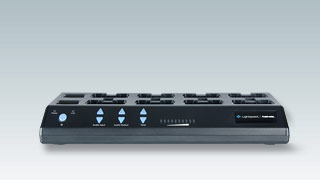

Activate Station
Activate Station with Bluetooth.

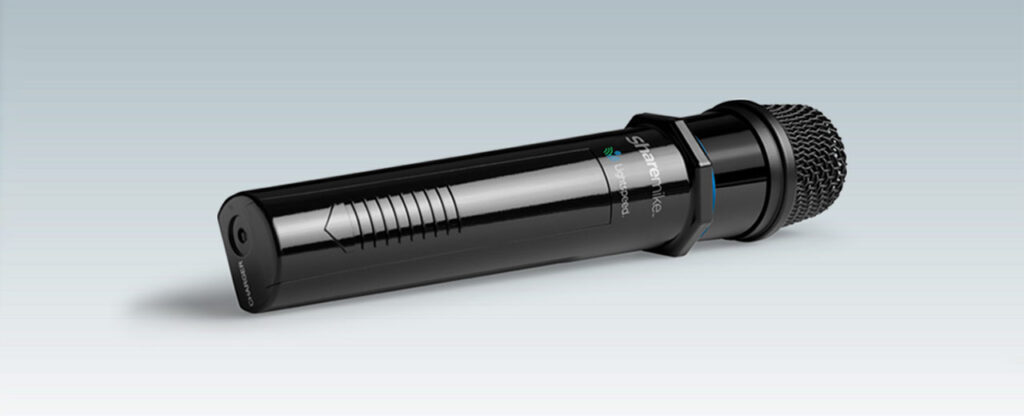

Sharemike Handheld Microphone (SMA)
Handheld microphone for student sharing.

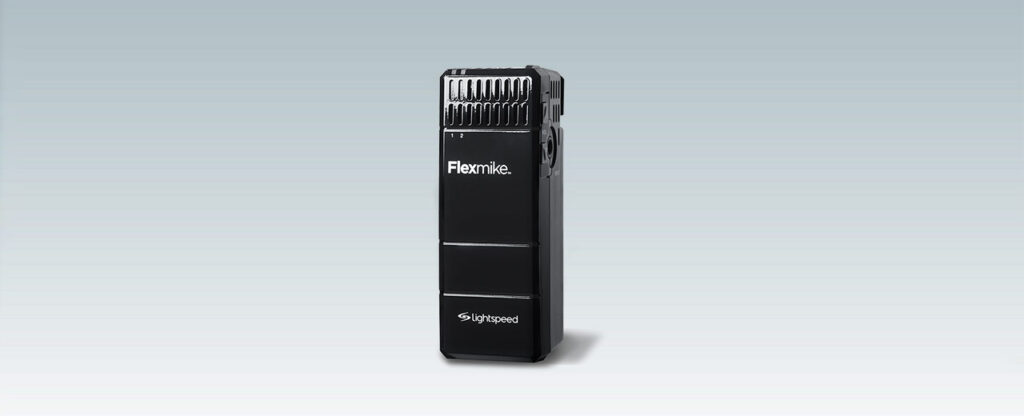

Flexmike Pendant Microphone (FMA)
Pendant-style microphone with magnetic lanyard.
Pod
Student group speaker with a rechargeable battery. The Pods must accompany an Activate Station and a whole-room instructional audio system built on our Access Platform.

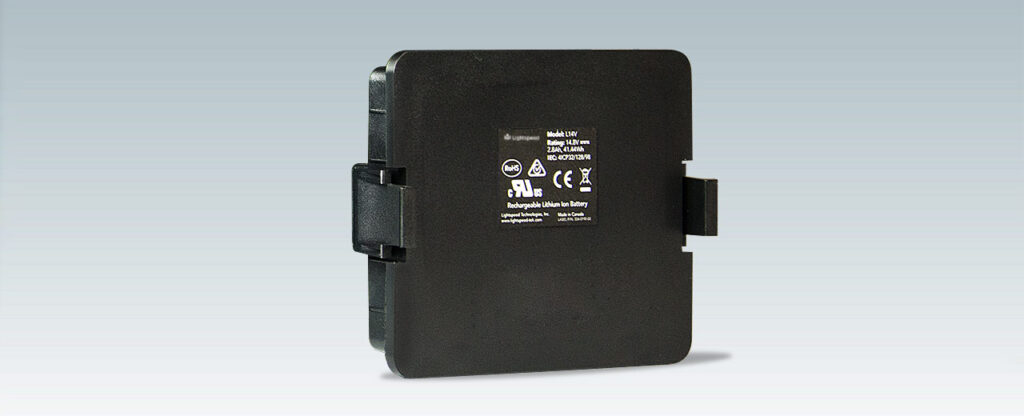

L14V Lithium Ion Rechargeable Battery
Optional lithium ion rechargeable battery for Redcat Systems purchased after June 1, 2016.

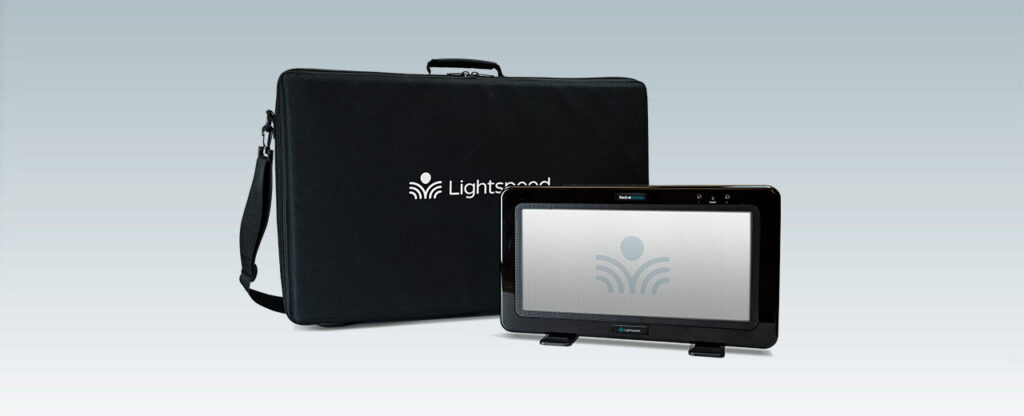

Redcat Carry Case
Redcat and Redcat Access classroom audio systems carry case. Solid construction with internal padding will keep your components organized and safe.

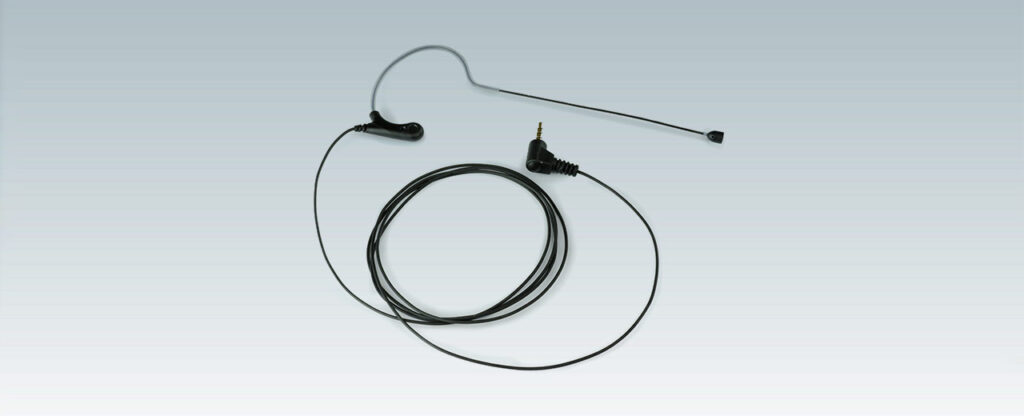

Earset Microphone
Earset microphone for Flexmike. Includes windscreen and clip.

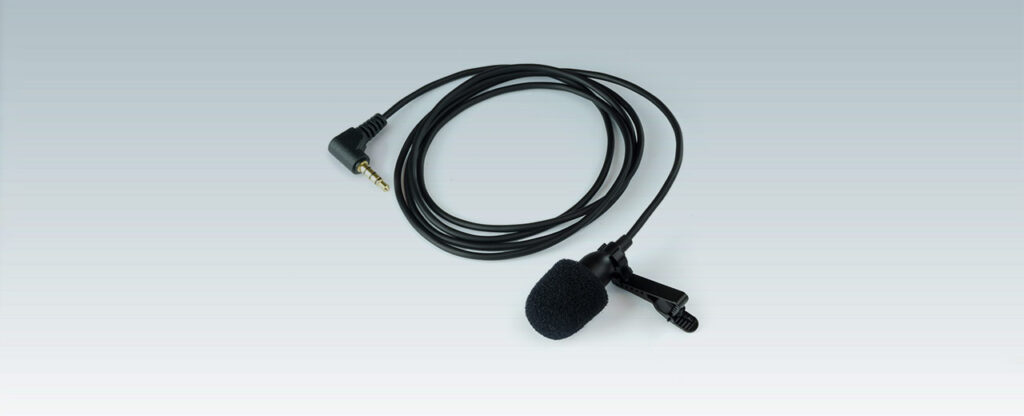

Lapel Microphone
Lapel microphone with windscreen and clip for Flexmike.

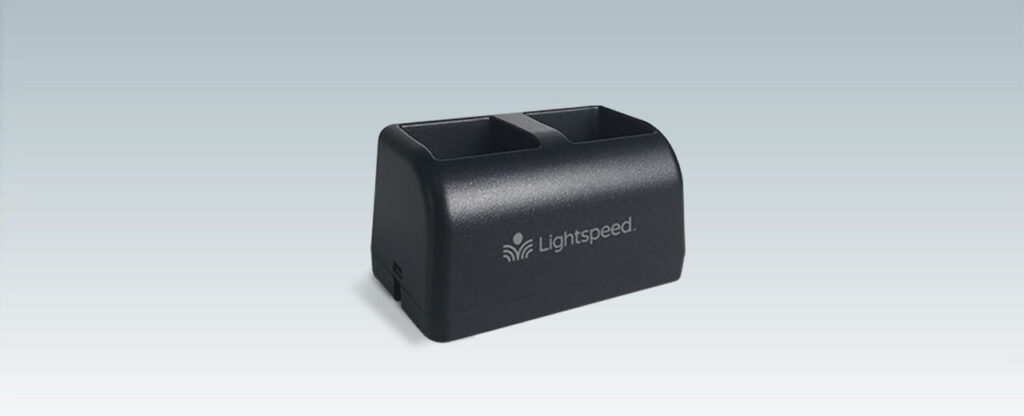

Flexmike Cradle Charger (FMCA)
Flexmike cradle charger with power supply.

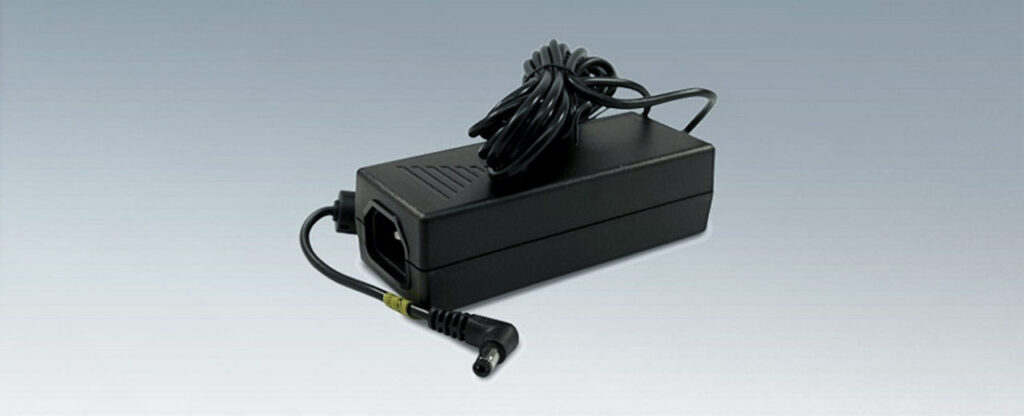

24V 1.75A Power Supply
This UL listed power supply is used with Redcat Access, Activate Station and compatible with older 1st and 2nd generations of IR Redcat.

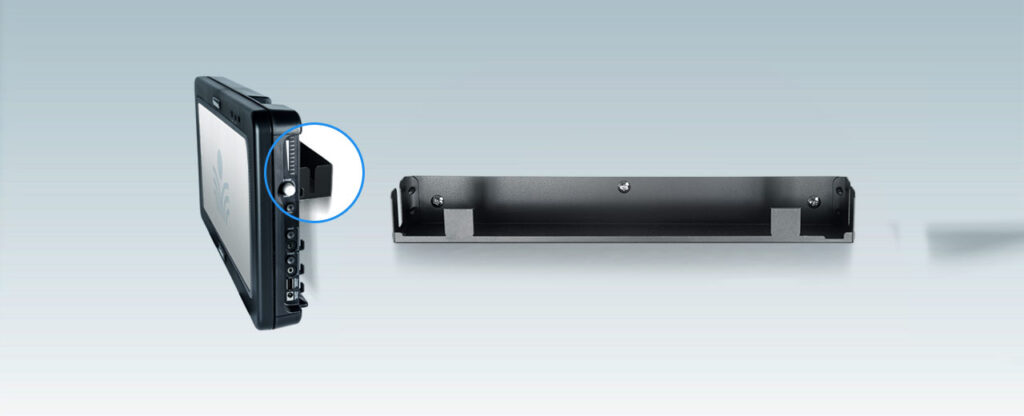

Redcat Wall Bracket
Redcat wall bracket. Redcat not included.

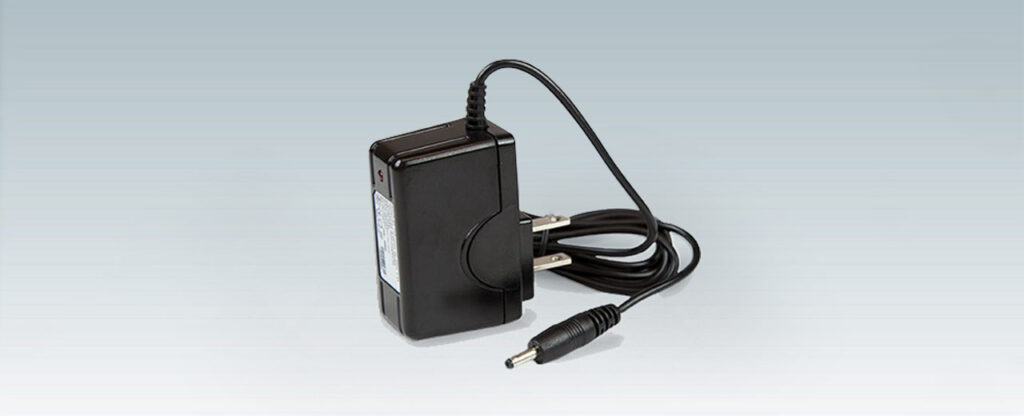

5V 1A Power Supply
Compatible power supply for use with the Flexmike Cradle Charger, USB3DC Power Adapter, Redmike Cradle Charger, and the Infrared Media Connector.
Redcat Security Bracket
Redcat security bracket. Redcat not included.

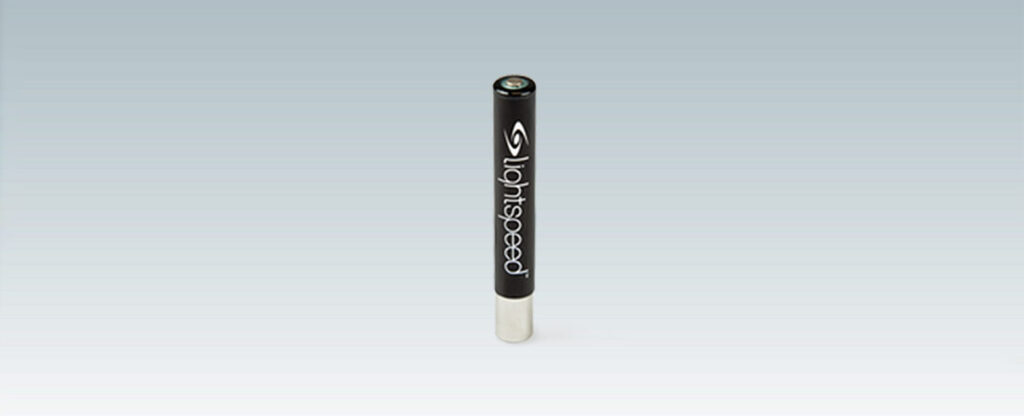

2 AA NiMH Rechargeable Battery Pack
2 AA NIMH Rechargeable Battery Pack used with the Redmike Share handheld classroom microphone.

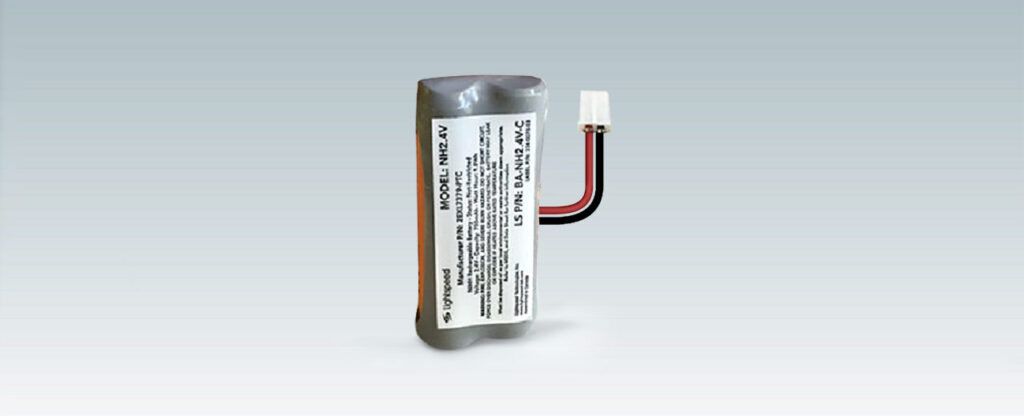

2.4V Rechargeable Battery Pack
2.4V NiMH rechargeable battery pack for use with Flexmike and Flexcat handheld remote control.

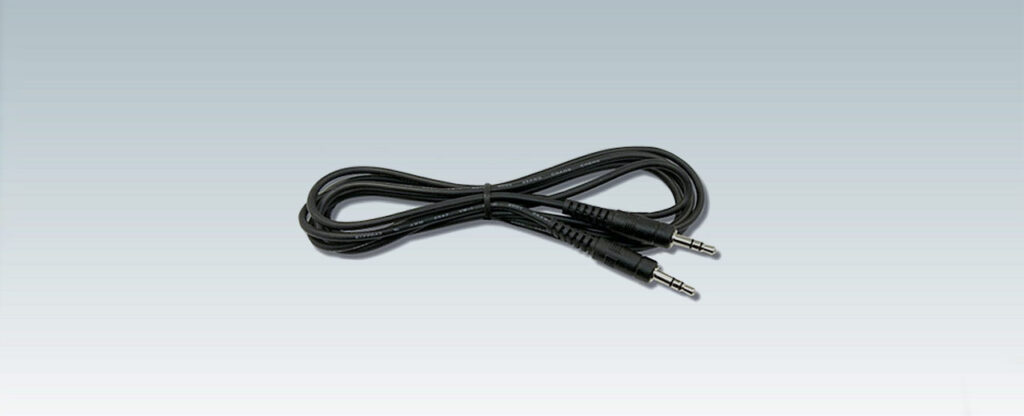

3.5mm Stereo Audio Cable
3.5mm stereo audio cable.

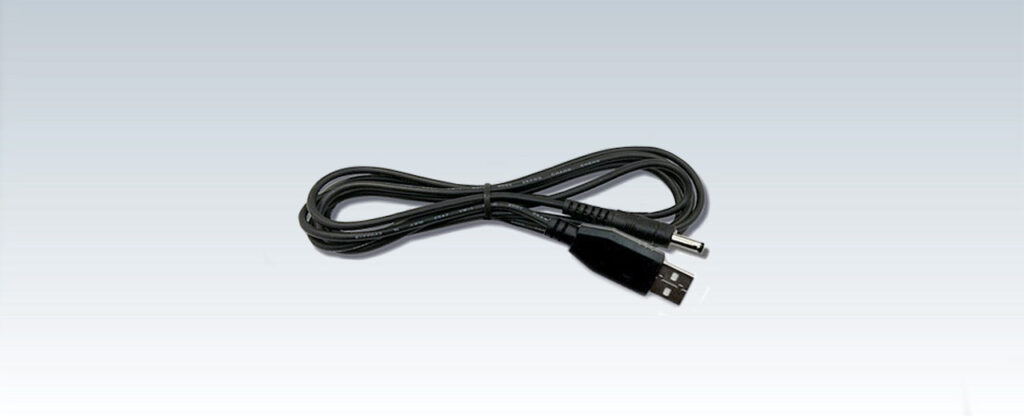

Sharemike USB Charging Cable
USB cable for charging the Sharemike microphone.

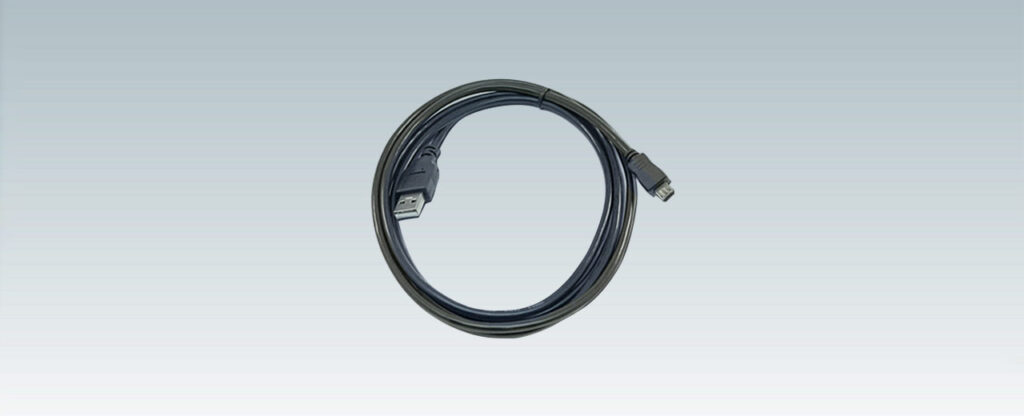

USB Charging Cable
USB Type A-MICRO B Cable for charging Flexmike classroom microphone or Activate Speaker Pod.
