A Versatile Multimedia Hub for the Classroom

955 Access is a powerful classroom amplifier that connects to your multimedia and installed speakers to deliver high-quality audio throughout the room. It excels in classrooms, open areas and large spaces with no audio dropout or interference, AND it’s adaptable as instructional needs evolve.

Access

Teachers speak into the microphone, 955 delivers crystal clear audio to the whole room.

Integration

Connect all multimedia audio into the 955, or alternatively into the Media Connector to send audio wirelessly to the 955.

Participation

Add student microphones to build interest and enthusiasm to share.

A Powerful Amplifier and Media Control Center

It’s powered by Access Technology, which means it can do much more, like seamlessly connect to other Access Technology components. That makes it highly effective in many types of learning spaces and enables new methods of instruction.

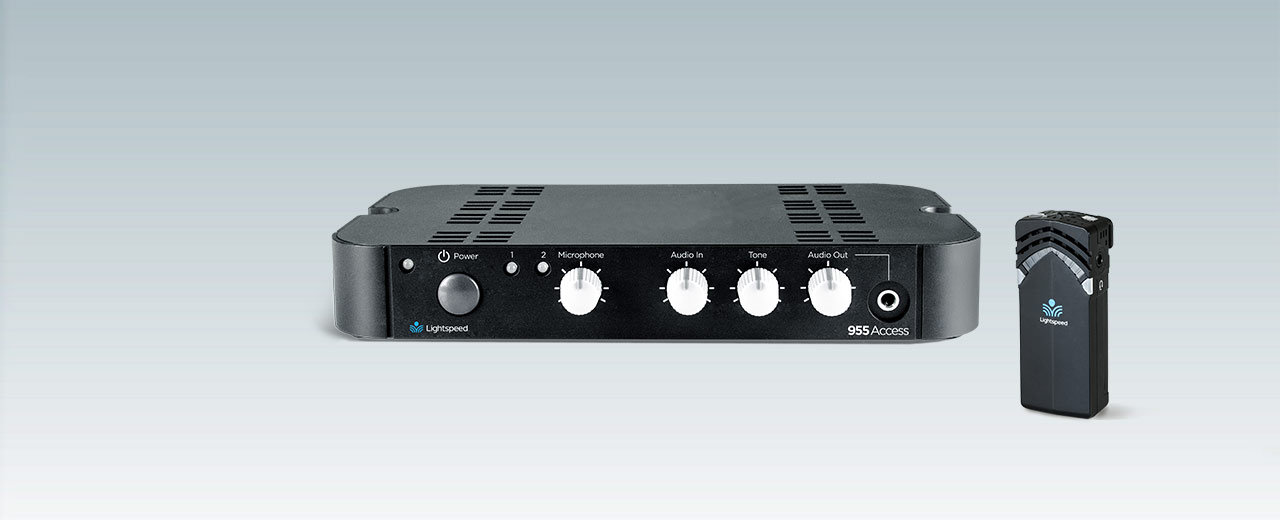

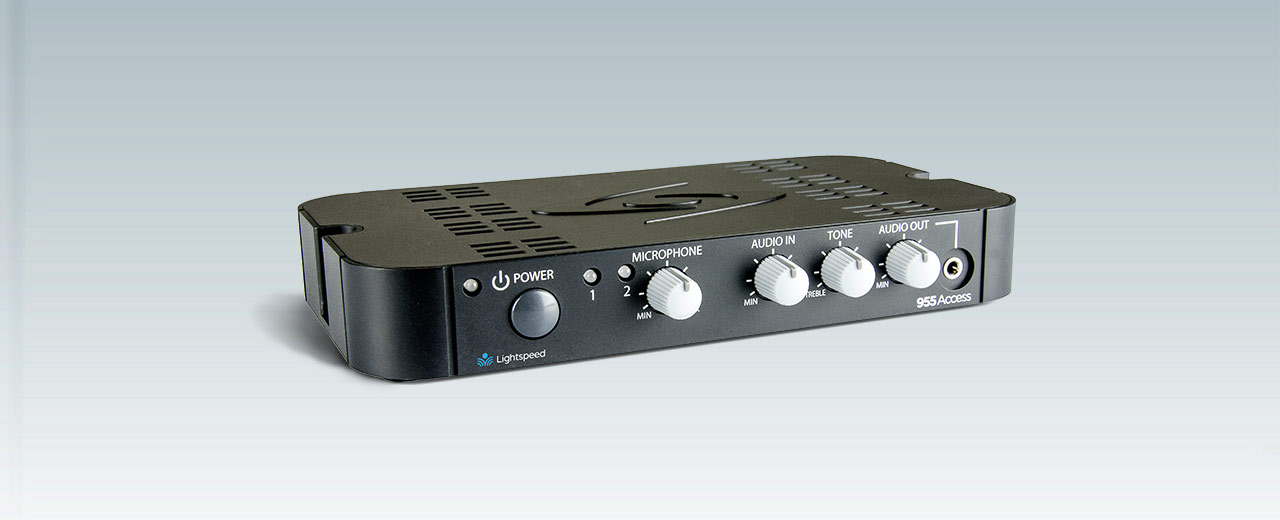

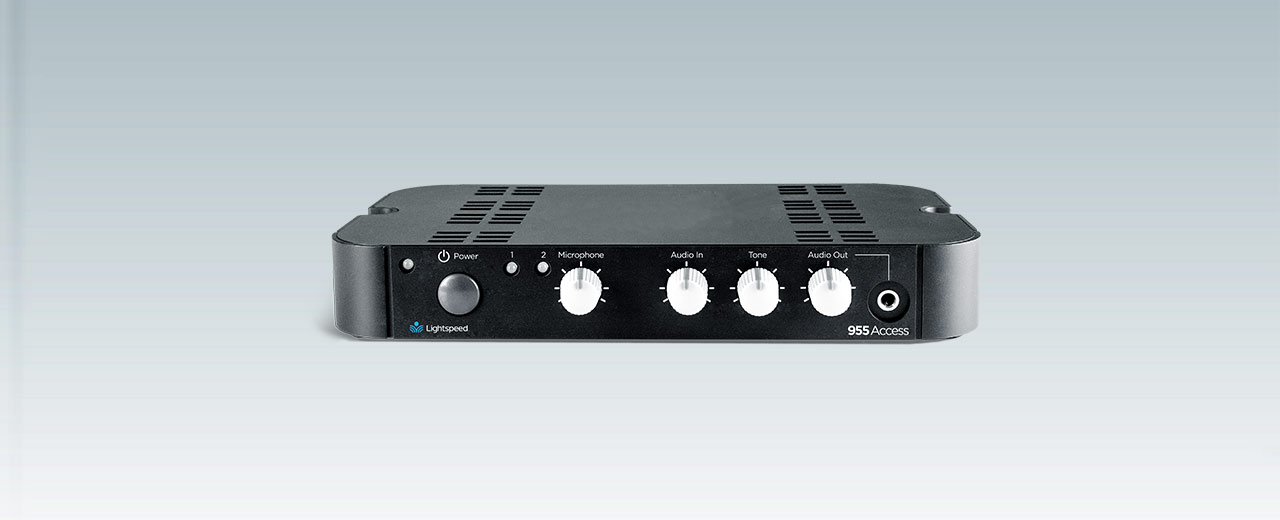

955 Access Base Station
Flexmike (FMN)
Sharemike (SMN)
TCQ Ceiling Speaker
Media Connector (MCN)
SKU
955
Short Description
955 Access wireless audio hub
Total Harmonic Distortion
< 1% @ 40 Watts (20W / Channel)
Acoustic Frequency Response
120 Hz - 7 kHz
Wireless Range
Up to 200 ft (60m) open field
Device Registration
Push button for registration with microphones, Activate Station, Pods or Media Connector

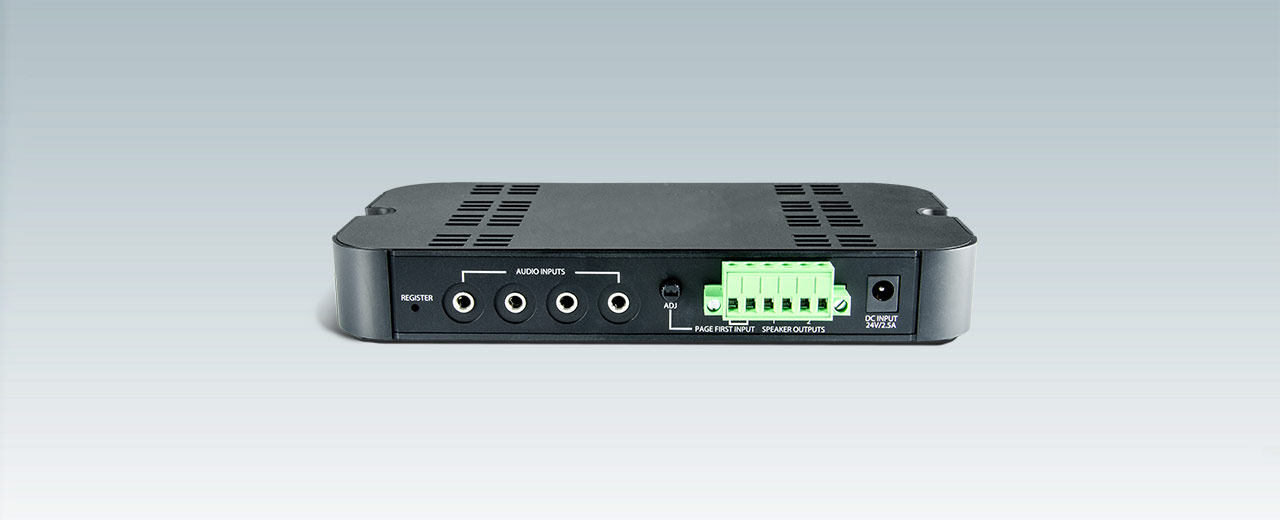

Connections
(1) 6-pin euro-block connector; (1) mixed audio output - 3.5mm; (1) DC power input; (4) audio inputs - 3.5mm; Page mute (PageFirst™) Euro-block
Audio Input with Volume Control
3.5mm stereo (x4) w/ master volume
ALD Output with Volume Control
3.5mm stereo (x1) mixed w/ volume control
Speaker load impedance
4Ω / Output
Controls
(1) power button with LED; (1) microphone volume control; (1) audio input volume control; (1) audio output level control,;Page mute (PageFirst™) sensitivity level control; (1) tone control
Page Mute
Optional PageFirst™ connection
Overall Dimensions (W x H x D)
7.6" x 5" x 1.13" (193mm x 127mm x 29mm)
Weight
9.5 oz / 260 g

SKU
FMN
Description
Pendant-style transceiver
Lanyard
Magnetic clasp with integrated earbud
Wireless Communication
Access Technology (1.9 GHz)
Audio Distortion
<1%
Integrated Microphone
Uni-directional electret
Earbud Output
3.5mm
Audio Input
USB-C 2-way digital audio interface
Battery Power
3.7V Lithium Ion battery pack
Battery Life
8 hours (fully charged)
Charging
2 contacts for cradle charging
USB Connection
Type C for charging and audio
Power
On/off switch
Dimensions
2.9” x 1.1” x 0.7” (74 x 28 x 18mm)
Weight
1.2 oz (34g)
Volume Control Range
+/- 6 dB

SKU
SMN
Description
Handheld transceiver
Lanyard
None
Wireless Communication
Access Technology (1.9 GHz)
Audio Distortion
<1%
Integrated Microphone
Uni-directional electret
Audio Input
USB-C 2-way digital audio interface
Battery Power
3.7V Lithium Ion battery pack
Battery Life
8 hours (fully charged)
Charging
2 contacts for cradle charging
Power
On/off button
Dimensions
6.0” x 1.1” x 1.1” (153 x 28 x 28mm)
Weight
2.6 oz (73g)

SKU
TCQ
Short Description
Two-way hybrid speaker system with exciter technology panel and low frequency cone driver.
Driver Size
Panel Size: 16.25" x 8.25" (41.3cm x 210cm)
Frequency Response
80 Hz - 20 kHz +/- 10dB
Impedence
8 Ohms
Power Handling
20 W RMS
Dimensions
11.38" x 23.43' x 4" (28.9cm x 55.9cm x 10.2cm) Plenum-rated enclosure (UL 2043)
Weight
9 lbs. (4.08kg)

SKU
MCN
Description
Transceiver
Power Input
5V/1.0A USB-C connector
Wireless Communication
Access Technology (1.9 GHz)
Tone control
1 bass / treble control
Digital audio interface
USB-C 2-way digital audio interface
Audio output
3.5mm stereo (x2) mixed with volume control
Audio inputs
3.5mm stereo (x4) with volume control
Audio Link/Pair Indicator
1 LED on front panel
Device pairing
Push button
Dimensions (L x W x H)
7.75” x 4.25 x 1.25”(197 x 108 x 32mm)
Weight
7.36 oz (209g)

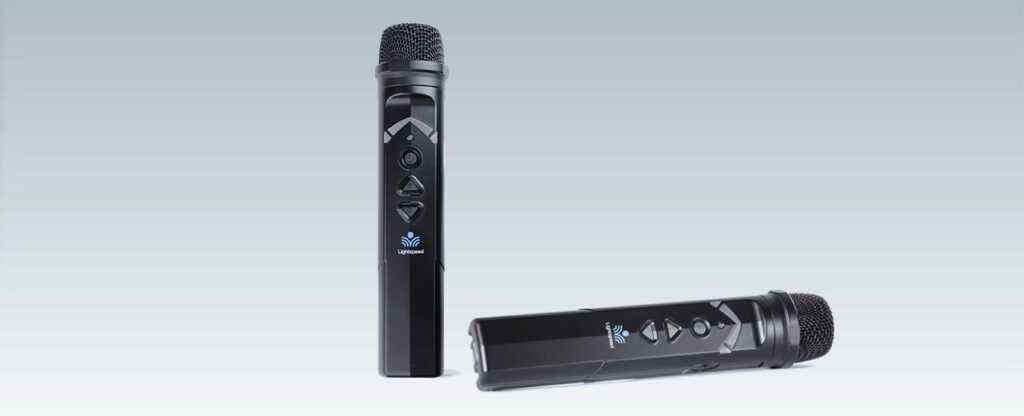

Sharemike (SMN)
Handheld microphone for student sharing.
TCQ Ceiling Speaker
Single TCQ hybrid ceiling speaker with mounting hardware for use with Lightspeed classroom audio systems.
Flexmike (FMN)
A simple, wireless microphone for every student. With tap-to-talk functionality that requires no teacher interface, T3 microphones make it easy for in-room students to share so teachers and remote learners never miss a word.
Media Connector (MCN)
Integrate all classroom multimedia audio sources. Computers, panels, mobile devices, and more can be connected to the compact Media Connector which wirelessly transmits the signal to a Lightspeed audio system.
DRQ Drop Ceiling Speaker
Single DRQ speaker with tile support for use with Lightspeed classroom audio systems.
WMQ Wall Speaker
Wall speaker with traditional cone technology used with the 800 Series classroom audio systems.
DC Power Cable Kit
50 ft DC power cable kit.
Plenum Speaker Wire - 50ft
50ft of plenum rated wire.
Plenum Speaker Wire - 75ft
75ft of plenum rated speaker wire.
3.5mm Stereo Audio Cable
3.5mm stereo audio cable.
